Scrap Chip Handling Conveyor

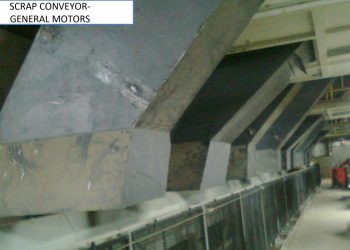

The Scrap Conveyors are basically Hinged Steel Belt type and are designed and manufactured as per International Standards. The Shapes of the conveyors are as required by the customer and to suit the application.

The Scrap Conveyors are basically Hinged Steel Belt type and are designed and manufactured as per International Standards.

The Standard Chain pitches are

2.5” (63.5 mm)
4” (101.6 mm)
6” (152.4 mm)
8” (203.2 mm)
9” (229 mm)

Belt widths vary in in progression of 1½’ i.e., from 12” to 54” maximum widths. Scrap carrying capacity usually is expressed in Tons/ hour. Since the scrap is voluminous indicating the bulk density in Tons / cubic meter would help design an appropriate conveyor and in determining the speed more precisely. The Chain pitches and belt widths are selected based on the nature of the scrap and scrap carrying capacity.

The Shapes of the conveyors are as required by customer and to suit the application. They are available in four types as mentioned below.

Type “A” – Straight length
Type “B” – Straight on an inclination
Type “C” – Horizontal straight and with an upward inclination
Type “D” – “Z” shaped construction

Salient Features of Scrap Handling Conveyor System

Conveyor design – material specifications, dimensions etc all conform to International Standards. They are easily replaceable and interchangeable. Conveyor structure is sturdy & robust and will be modular in construction made out of rolled and formed sections.
Chain roller track is provided with the carbon steel “Rail Section-30 Lb” to with- stand the heavy load and to avoid wear and tear.
Chain parts are made out from carbon and alloy steel duly machined and heat treated with suitable breaking strength,
Conveyor chain is provided with Hardened and ground Rollers fitted with Precision deep grove ball bearings for longer and trouble free continuous duty application. There shall not be frequent replacement, stoppages and breakdowns.
Hinged Belt Pans / over lapping Side Wings / Aprons are in formed section made out of Steel plates.
Simpled Hinge Pans to ensure dislodging of oily sheet metal scrap.
Full length of Conveyor is provided with boltable type hopper on both sides.
Provided with suitable chain guards, safety mesh and easily removable Oil / Scrap collecting tray at bottom side.
Automatic Lubrication System is provided to lubricate the chain (Essentially the chain links, Roller-Pin-Bush) to protect them from wear and tear & to give long trouble free service life.
There shall be an over load protection in the form of Spring loaded Torque Limiter which will avoid any damage to the Conveyor and Gear drives and the conveyor comes to a halt in the event of any overload or jamming.
Additional safety – overload protection with segmented disc is provided as additional safety with Proximity Sensor that safeguards the geared motor and the entire conveyor.
Conveyor speed can be varied with VFD, and with suitable gearbox and motor of internationally renowned brands like SEW / Sumitomo etc or as specified by the customer.
Walkway, support structure is provided for Main Conveyor as per requirement.
Maintenance platform with Chequred Plate Covering and hand railing provided at the discharge end of Main Conveyor to ease the maintenance work.
Bi-Directional and Electro-Pneumatically operated Chute is provided below the main discharge conveyor and is designed to feed two trucks below the platform at both sides.
Maintenance platform with Chequred Plate Covering and hand railing provided at the discharge end of Main Conveyor to ease the maintenance work.
Bi-Directional and Electro-Pneumatically operated Chute is provided below the main discharge conveyor and is designed to feed two trucks below the platform at both sides.
